Micheels Residence.jpg

LOCATION
Address: 16 Minute Man Hill
City: Westport
State: Connecticut
Zip Code: 06880
Nation: United States
Google Maps Address: 41.11355, -73.35249

STATUS
Type: Residence
Status: Demolished

TECHNICAL DATA
Date(s): 1972
Site Area:
Floor Area:
Height:
Floors (Above Ground):
Building Cost:

PROFESSIONAL TEAM
Client:
Architect: Paul Rudolph
Rudolph Staff: James Brown
Associate Architect:
Landscape:
Structural: David Hofman
MEP:
QS/PM:

SUPPLIERS
Contractor: Charles Remlin
Subcontractor(s):

Micheels Residence

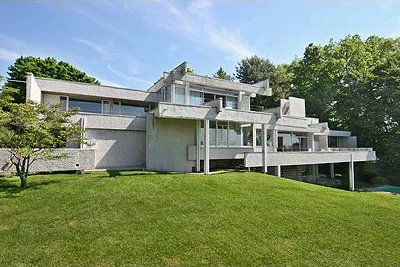

  • Perched on a green hillside, this horizontal composition stretched its long, lean, linear elements across the site—and provided its owner with expansive views of Long Island Sound. Houses that are “one room deep” (as is the case here) often feel the most connected to the landscape: one never feels confined—and never far from a window. This feeling of openness is enhanced by several expansive exterior decks, which also contribute to the horizontal aesthetic.

  • It is in the Micheels house that Rudolph most explicitly composed with the “thrust and counterthrust” of various elements, especially planar ones. Volumes, sun shading beams, support columns, and panels were composed with De Stijlian dynamism—all slipping and sliding past each other, or pushed outward, or intersecting, or suspended—and often in a combination of the above. Some of this had been explored earlier, in Rudolph’s Dweck House (Deal, NJ, 1971)—but here the elements boldly thrust outward with movement. Rudolph said “I want a million and one things going on at once, but they must be resolved and balance, because it is through the resolution of tension that something becomes dynamic.” The building does not feel jagged or jumbled, and it is through Rudolph’s sense of balance that he’s able to resolve all these elements into a practical and serene home. Contributing to that resolution is his choice of materials and palette: white—inside and out—with the diverse exterior elements visually homogenized through the application of an aggregate finish, and the interiors all smooth, painted surfaces.

  • The house was comprised of numerous series of interlocking planes in a linear fashion. These planes were prefabricated wooden beams covered in white cement aggregate.

  • Paul had designed the eastern section of the structure to suspend over the ground.

  • Paul sought to exhibit a sense of motion. This impression of motion was achieved by the relationship between the spaces and the way they connect with one another by overlapping parallel walls and the way the walls and the structural elements join with one another, interlocking and moving past the intersection.

  • There was an extremely popular dispute over its demolition in 2007. A legal dispute had taken place between the owners and the preservationists before it was finally torn down.

  • Despite strong attempts to save the building—including an offer from a buyer who was willing to preserve it—the house was taken down only 35 years after it was built.

DRAWINGS - Design Drawings / Renderings

DRAWINGS - Construction Drawings

DRAWINGS - Shop Drawings

PHOTOS - Project Model

PHOTOS - During Construction

PHOTOS - Completed Project

PHOTOS - Current Conditions

LINKS FOR MORE INFORMATION

RELATED DOWNLOADS

PROJECT BIBLIOGRAPHY
de Alba, Roberto. (2003). Paul Rudolph: The Late Work. New York, NY: Princeton Architectural Press.
